NZQA6V2XV5T1G - onsemi

Description: SOT-553 Package Allows Four Separate Unidirectional Configurations; Low Leakage < 1 uA @ 3 V for NZQA5V6XV5T1G; Breakdown Voltage: 5.6 V @ 1 mA; ESD Protection Meeting IEC61000-4-2-Level 4; These are Pb-Free Devices

Download NZQA6V2XV5T1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

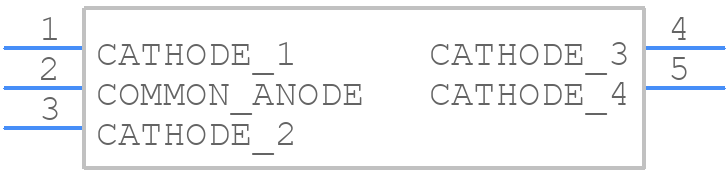

NZQA6V2XV5T1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NZQA6V2XV5T1G - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT−553
click to zoom
3D Models
NZQA6V2XV5T1G - onsemi - 3D model - SO Transistor Flat Lead - SOT−553
click to zoom

NZQA6V2XV5T1G Details

  • Manufacturer Part Number:

    NZQA6V2XV5T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-553, 5 LEAD

  • Package Description:

    SOT-553, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    463B-01

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Breakdown Voltage-Max:

    6.51 V

  • Breakdown Voltage-Min:

    5.89 V

  • Breakdown Voltage-Nom:

    6.2 V

  • Clamping Voltage-Max:

    11.5 V

  • Configuration:

    COMMON ANODE, 4 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    1.3 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    100 W

  • Number of Elements:

    4

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.3 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    4 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Test Voltage:

    4 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
