Part Image

O200H016ALPP5N0000 - Vishay

Description: DISPLAY, OLED GRAPHIC, 200X16 PIXELS; Resolution:200 x 16 Pixels; Display Appearance:Yellow on Black; Logic Voltage:5V; Interface Type:Parallel, SPI; Module Size:182mm x 38.5mm; Operating Temperature Min:-40°C; MSL:- RoHS Compliant: Yes

Download O200H016ALPP5N0000 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this O200H016ALPP5N0000 model

Email notifications will be applied after download.

Send part feedback

Symbol

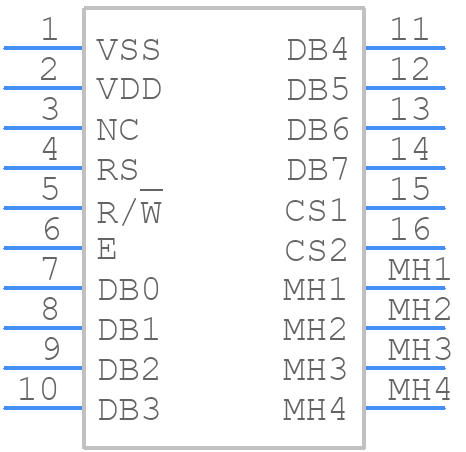

O200H016ALPP5N0000 - Vishay - PCB symbol

PCB Footprints

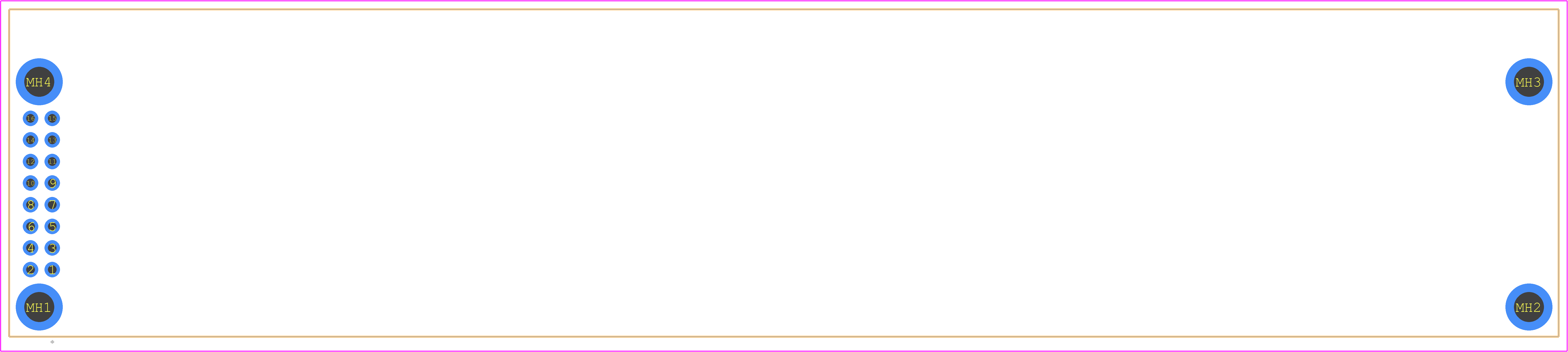

O200H016ALPP5N0000 - Vishay PCB footprint - Other - Other - O200H016ALPP5N0000-1

3D Models

O200H016ALPP5N0000 - Vishay - 3D model - Other - O200H016ALPP5N0000-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for O200H016ALPP5N0000
Part Number O200H016ALPP5N0000
Manufacturer Vishay
Pin Count 20
Part Category Display
Package Category Other
Footprint Name Other - O200H016ALPP5N0000-1
Released Date Nov 25, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

O200H016ALPP5N0000 Details

Manufacturer Part Number:
O200H016ALPP5N0000
Manufacturer:
Vishay Intertechnologies

Trust Checks

Expert Contribution

System Verified

Community Approved

O200H016ALPP5N0000 Overview

Use the download button to access the O200H016ALPP5N0000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like O200H, or try a keyword search, such as XO
