OC2321VQFN8XTMA1 - Infineon

Description: OPTIGA™ Connect IoT OC2321

Download OC2321VQFN8XTMA1 Model
Schematic
symbols

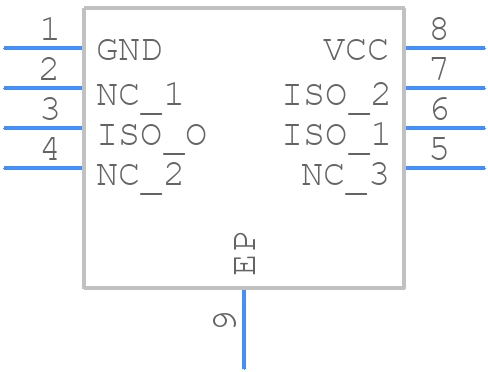

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OC2321VQFN8XTMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-VQFN-8-4
click to zoom
3D Models
OC2321VQFN8XTMA1 - Infineon  - 3D model - Small Outline No-lead - PG-VQFN-8-4
click to zoom

OC2321VQFN8XTMA1 Details

  • Manufacturer Part Number:

    OC2321VQFN8XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-8

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

OC2321VQFN8XTMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the top layer.
  • Infineon recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK between the device and the heat sink. Additionally, ensure good airflow and avoid blocking the airflow around the device.
  • Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time above liquidus of 30-60 seconds, and a cooling rate of 4°C/s. Refer to the Infineon soldering guide for more details.
  • Infineon recommends storing the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or applying excessive force to the leads or package.
  • Infineon recommends handling the devices by the body, avoiding touching the leads or electrical contacts. Clean the devices with a soft brush and a mild detergent, and avoid using ultrasonic cleaning or harsh chemicals.
