- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ODIN-W262-06B
- Part Number ODIN-W262-06B
- Manufacturer u-blox
- Pin Count 103
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - ODIN-W262-06B-5
- Released Date Dec 29, 2020
- Last Modified Date Dec 2, 2024 10:53 AM UTC
- Pinout / Pin List Click Here (Member Only)
ODIN-W262-06B Details
-
Manufacturer Part Number:
ODIN-W262-06B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MODULE-103
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
JESD-30 Code:
R-XXMA-N103
-
Length:
22.3 mm
-
Moisture Sensitivity Level:
4
ODIN-W262-06B Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the enable signal (EN). This ensures that the module is properly initialized and configured.
-
The ODIN-W262-06B can be configured using the AT command set. Use the AT+CWJAP command to set the Wi-Fi network SSID and password. For example, AT+CWJAP="SSID","password".
-
The maximum transmission power of the ODIN-W262-06B is +18 dBm.
-
Yes, the ODIN-W262-06B has a U.FL connector for connecting an external antenna. Make sure to use a compatible antenna with a maximum gain of 2 dBi to ensure compliance with regulatory requirements.
-
The firmware of the ODIN-W262-06B can be updated using the u-blox WISE-EDGE software tool. Follow the instructions provided in the user manual to update the firmware.
Trust Checks
Expert Contribution
System Verified
Community Approved
ODIN-W262-06B Overview

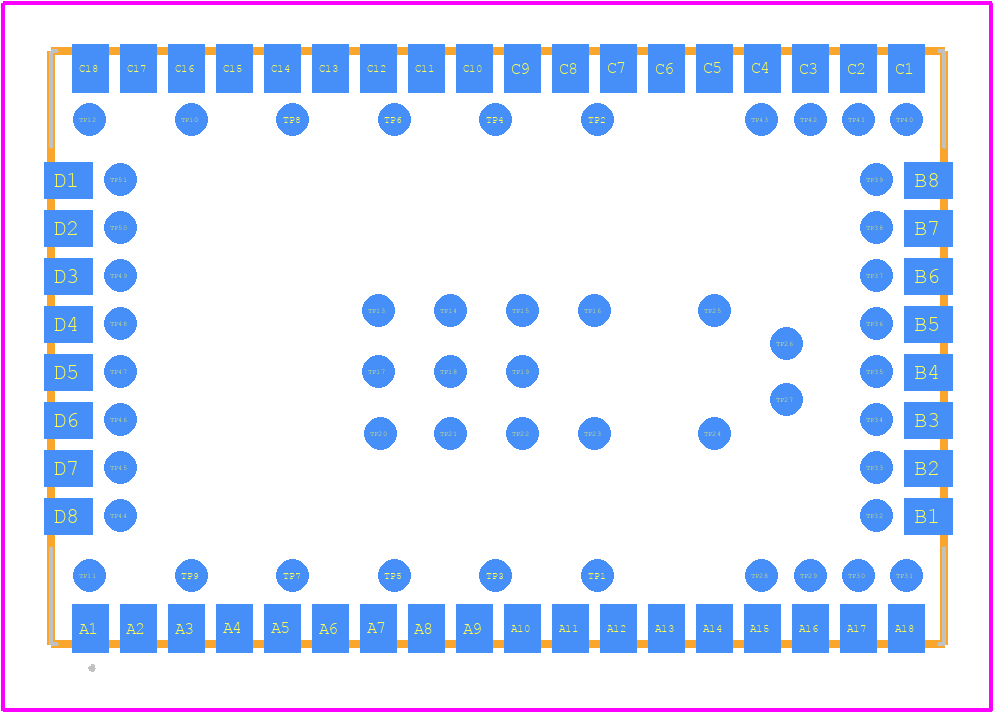

Use the download button to access the ODIN-W262-06B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ODIN-,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
