OF101KE - Ohmite

Description: Small, Reliable Carbon Composition Resistors

Download OF101KE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OF101KE - Ohmite - PCB symbol
click to zoom
PCB Footprints

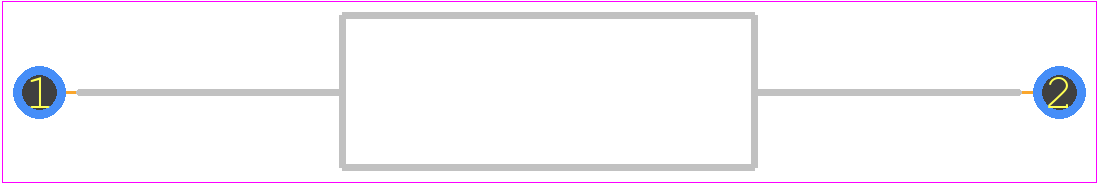

OF101KE - Ohmite PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - OF
click to zoom
3D Models
OF101KE - Ohmite - 3D model - Resistors, Axial Diameter Horizontal Mounting - OF
click to zoom

OF101KE Details

  • Manufacturer Part Number:

    OF101KE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.10.00.60

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    0

  • Construction:

    Tubular

  • Lead Diameter:

    0.7 mm

  • Lead Length:

    28.83 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    130 °C

  • Package Diameter:

    3.8 mm

  • Package Length:

    10.3 mm

  • Package Style:

    Axial

  • Packing Method:

    Bulk

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    100 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    CARBON COMPOSITION

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

  • Working Voltage:

    350 V

OF101KE Frequently Asked Questions (FAQs)

  • The thermal resistance of the OF101KE is not explicitly stated in the datasheet, but according to Ohmite's application notes, the thermal resistance (RθJA) is approximately 10°C/W for the OF101KE.
  • Yes, the OF101KE is designed to withstand high-vibration environments. Ohmite's testing shows that the resistor can withstand vibrations up to 10G peak acceleration, making it suitable for use in harsh environments.
  • Yes, the OF101KE is designed for high-reliability applications. Ohmite's manufacturing process and quality control ensure that the resistor meets or exceeds industry standards for reliability, including MIL-STD-202 and IEC 60115-1.
  • Yes, the OF101KE is designed to operate in humid environments. The resistor has a moisture sensitivity level (MSL) of 1, which means it can withstand humidity levels up to 85% RH at 85°C without degradation.
  • The recommended soldering temperature for the OF101KE is between 250°C to 260°C for a maximum of 3 seconds. Exceeding this temperature or time may damage the resistor.
