OJE-SH-112LM,000 - TE Connectivity

Description: General Purpose Power Relay, DC, Monostable, 1 Form A SPST-NO, 3 A Contact Rating, 12 VDC Coil Voltage, OEG Miniature PCB Relay OJ/OJE

Download OJE-SH-112LM,000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

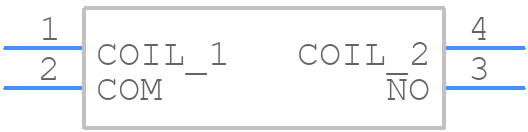

OJE-SH-112LM,000 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

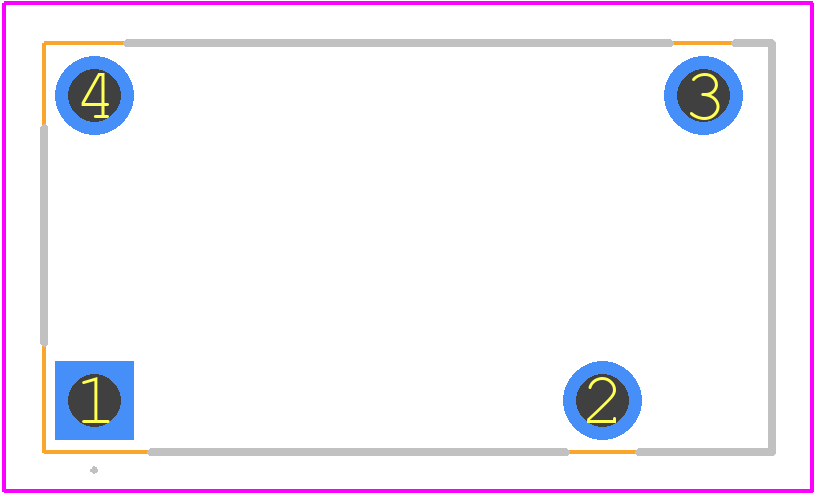

OJE-SH-112LM,000 - TE Connectivity PCB footprint - Other - Other - OJE-SH-112LM,000-1
click to zoom
3D Models
OJE-SH-112LM,000 - TE Connectivity - 3D model - Other - OJE-SH-112LM,000-1
click to zoom

OJE-SH-112LM,000 Details

  • Manufacturer Part Number:

    OJE-SH-112LM,000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    10.2 mm

  • Body Height:

    14.7 mm

  • Body Length or Diameter:

    18.2 mm

  • Coil Current(DC)-Max:

    0.017 A

  • Coil Power:

    200 mW

  • Coil Resistance:

    720 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    3 A

  • Contact Current(DC)-Max:

    3 A

  • Contact Voltage(AC)-Max:

    277 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    3000 Vrms

  • Dielectric Strength Between Open Contacts:

    750 Vrms

  • End Contact Material:

    SILVER NICKEL

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TRAY

  • Physical Dimension:

    18.2mm x 10.2mm x 14.7mm

  • Reference Standard:

    CSA; TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    9 g

OJE-SH-112LM,000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of OJE-SH-112LM,000 is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in).
  • Yes, the OJE-SH-112LM,000 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with high vibration levels.
  • The OJE-SH-112LM,000 has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
  • The OJE-SH-112LM,000 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • While the datasheet specifies wire sizes from 0.5 mm² to 2.5 mm², it's possible to use smaller or larger wire sizes with proper derating. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure reliable connections and avoid damage to the connector.
