OMAP3503ECUS - Texas Instruments

OMAP3503ECUS Details

• Manufacturer Part Number:

  OMAP3503ECUS

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

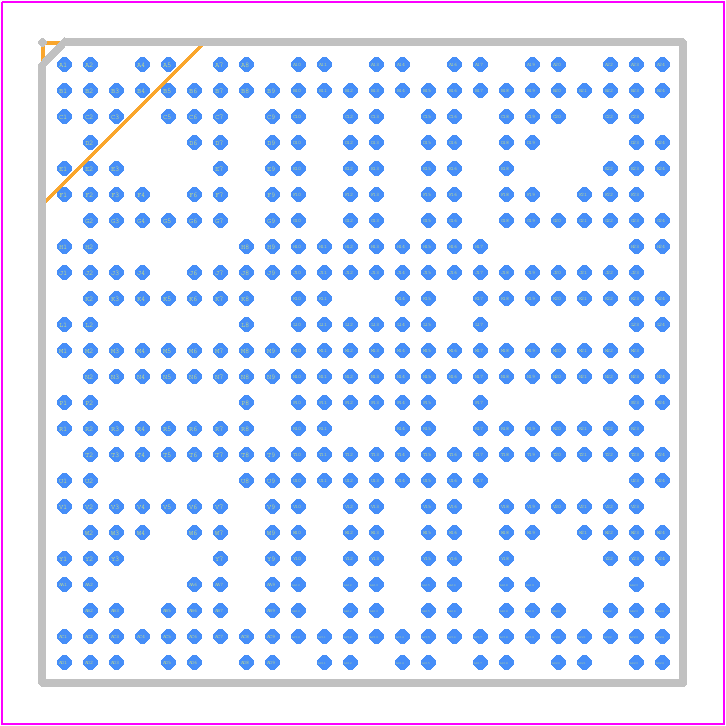

• Part Package Code:

  BGA

• Pin Count:

  423

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.50

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Address Bus Width:

  15

• Barrel Shifter:

  NO

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  59 MHz

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• Internal Bus Architecture:

  SINGLE

• JESD-30 Code:

  S-PBGA-B423

• JESD-609 Code:

  e1

• Length:

  16 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  4

• Number of DMA Channels:

  32

• Number of Terminals:

  423

• Number of Timers:

  15

• On Chip Data RAM Width:

  32

• On Chip Program ROM Width:

  32

• Operating Temperature-Max:

  90 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA423,24X24,25

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  32768

• ROM Programmability:

  MROM

• Seated Height-Max:

  1.4 mm

• Speed:

  720 MHz

• Supply Voltage-Max:

  1.91 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16 mm

• uPs/uCs/Peripheral ICs Type:

  SoC
