16 X 16 MM, 0.80 MM PITCH, GREEN, PLASTIC, BGA-361
Pin Count:
361
HTS Code:
8542.31.00.30
Manufacturer:
Texas Instruments
YTEOL:
0
Additional Feature:
ALSO REQUIRES 3.3 V AND 1.8 V SUPPLY
JESD-30 Code:
S-PBGA-B361
JESD-609 Code:
e1
Moisture Sensitivity Level:
3
Number of Terminals:
361
Operating Temperature-Max:
90 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
BGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
260
Supply Voltage-Max:
1.32 V
Supply Voltage-Min:
1.14 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
uPs/uCs/Peripheral ICs Type:
SoC
OMAPL138AZWT3 Frequently Asked Questions (FAQs)
The recommended power-up sequence is to power up the core voltage (VDD) first, followed by the I/O voltage (VDDA). This ensures that the internal voltage regulators are properly enabled before the I/O pins are powered up.
The OMAPL138AZWT3 has multiple clock sources, including an internal oscillator, external crystal oscillator, and PLL. The clock sources can be configured using the clock control registers. Refer to the device's technical reference manual for detailed information on clock configuration.
The maximum operating frequency of OMAPL138AZWT3 is 456 MHz. However, the actual operating frequency may be limited by the specific application, power consumption, and thermal considerations.
The EMIF (External Memory Interface) interface on OMAPL138AZWT3 is used to connect to external memory devices such as SDRAM, DDR, and flash. The EMIF interface can be configured using the EMIF control registers. Refer to the device's technical reference manual for detailed information on EMIF configuration and usage.
The reset pin on OMAPL138AZWT3 is used to reset the device to its default state. When the reset pin is asserted, the device resets its internal state, including the processor, peripherals, and memory. The reset pin can be used to recover from system errors or to initialize the device during power-up.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OMAPL138AZWT3 Overview

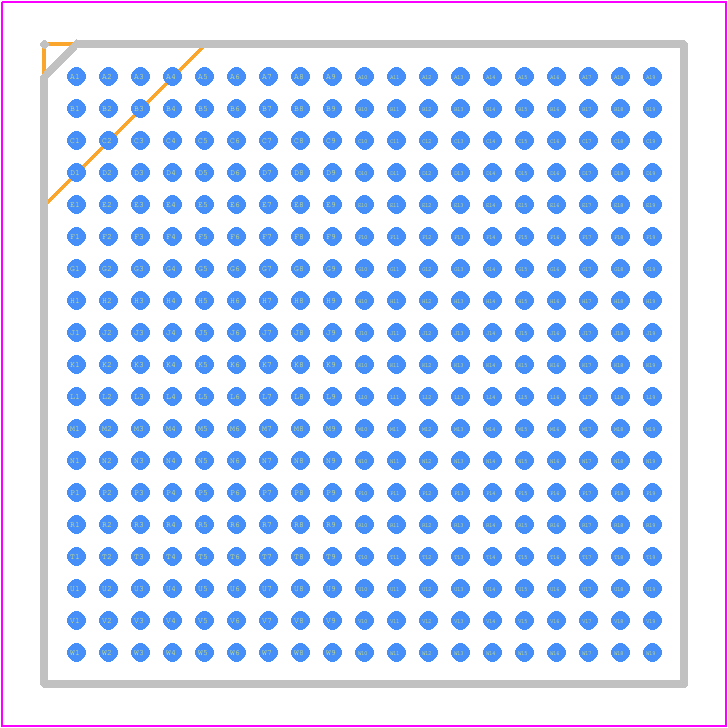

Use the download button to access the OMAPL138AZWT3 schematic symbol, PCB footprint, and 3D model.
