ONET1130ECRSMT - Texas Instruments

Description: 11.7Gbps Transceiver with Dual CDRs and Integrated Modulator Driver

Download ONET1130ECRSMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

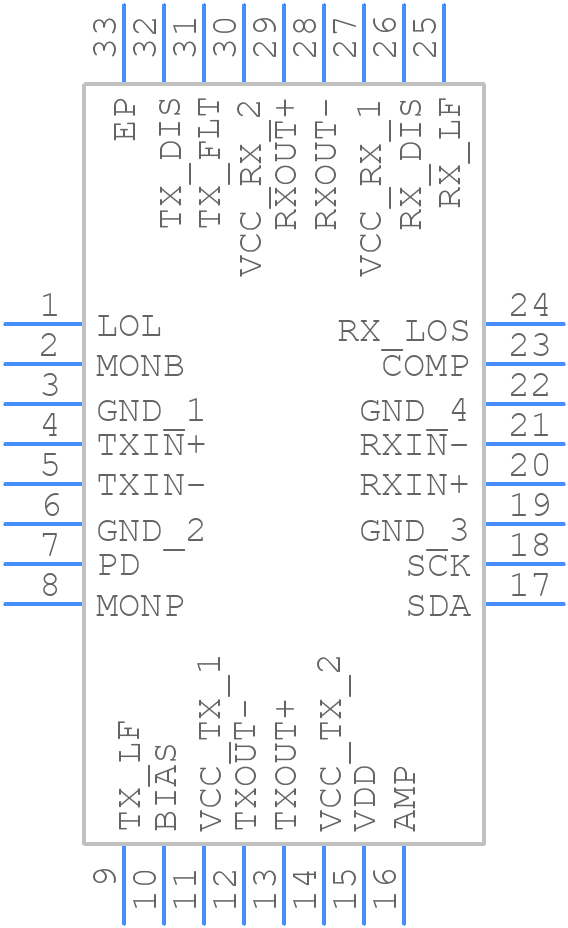

ONET1130ECRSMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ONET1130ECRSMT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM0032B
click to zoom
3D Models
ONET1130ECRSMT - Texas Instruments - 3D model - Quad Flat No-Lead - RSM0032B
click to zoom

ONET1130ECRSMT Details

  • Manufacturer Part Number:

    ONET1130ECRSMT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Applications:

    SONET

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    266 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm
