Texas Instruments provides a recommended PCB layout and thermal management guide in their application note SLUAAT73, which includes guidelines for thermal pad connection, PCB layer stackup, and heat sink design.
The ONET1151LRGER has multiple power modes, including low-power modes. To configure the device for optimal power consumption, refer to the device's power management section in the datasheet and application notes, and consider using the Power Management IC (PMIC) to optimize power consumption.
To ensure EMI and EMC compliance, follow the guidelines in the Texas Instruments application note SLAA642, which provides recommendations for PCB layout, component selection, and shielding. Additionally, consider using EMI filters and shielding on the device's inputs and outputs.
Texas Instruments provides a range of debugging tools, including the XDS110 debug probe and the Code Composer Studio (CCS) integrated development environment (IDE). Additionally, refer to the device's datasheet and application notes for troubleshooting guidelines and FAQs.
The ONET1151LRGER is designed to operate in industrial temperature ranges. For operation in harsh environments, consider using conformal coating, potting, or encapsulation to protect the device from moisture, vibration, and extreme temperatures. Refer to the device's datasheet and application notes for specific guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ONET1151LRGER Overview

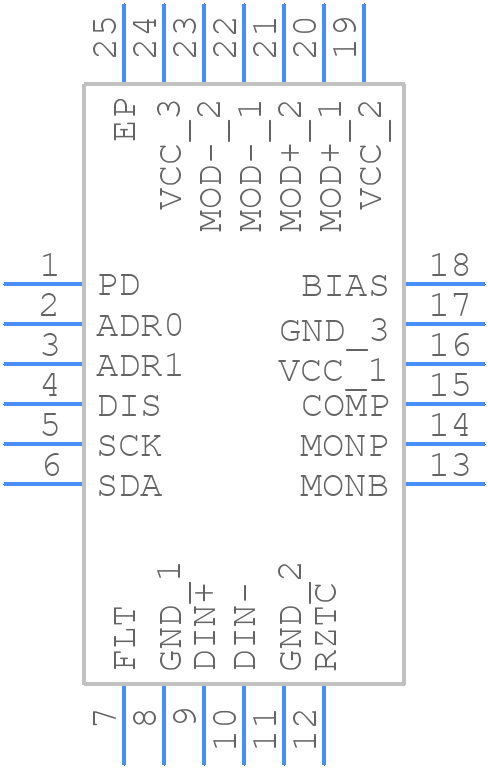

Use the download button to access the ONET1151LRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ONET1,
or try a keyword search, such as ATM/SONET/SDH ICs
