Part Image

ONET1151PRGTT - Texas Instruments

Description: 11.3-Gbps limiting amplifier

Download ONET1151PRGTT Model

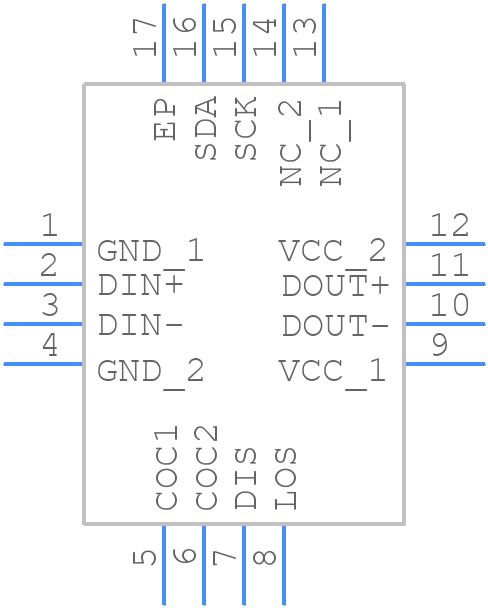

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ONET1151PRGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT
click to zoom
3D Models
ONET1151PRGTT - Texas Instruments  - 3D model - Quad Flat No-Lead - RGT
click to zoom

ONET1151PRGTT Details

  • Manufacturer Part Number:

    ONET1151PRGTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Applications:

    SDH; SONET

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    52 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ONET1151PRGTT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode choke to filter the power supply.
  • Use the TI-provided software development kit (SDK) and follow the application notes and user guides to configure the device for your specific use case.
  • The device has a maximum junction temperature of 125°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and follow the recommended PCB layout guidelines.
  • Use the built-in diagnostic features, such as the error registers and debug interfaces. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
  • Yes, the ONET1151PRGTT is suitable for safety-critical applications. It meets the requirements of IEC 61508 SIL 2 and ISO 26262 ASIL B. Consult the datasheet and safety manual for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ONET1151PRGTT Overview

Use the download button to access the ONET1151PRGTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ONET1, or try a keyword search, such as ATM/SONET/SDH ICs
