ONET4201PARGTR - Texas Instruments

Description: 1 Gbps to 4.25 Gbps Limiting Amplifier With LOS and RSSI

Download ONET4201PARGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

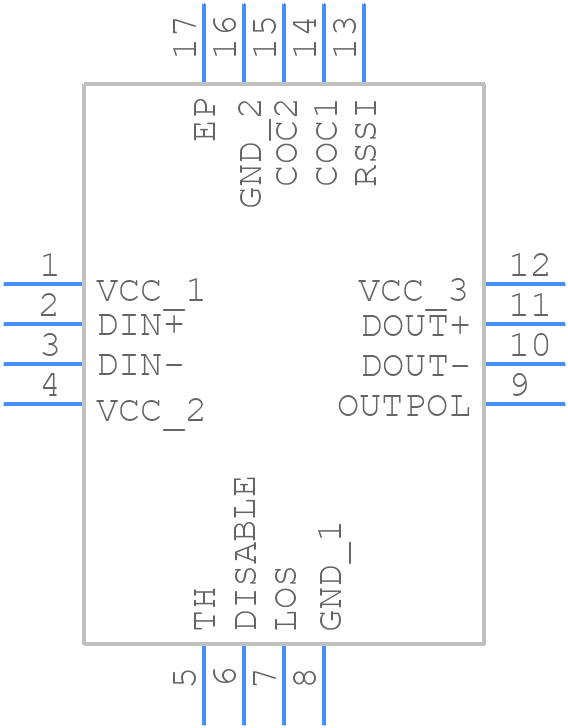

ONET4201PARGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ONET4201PARGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016A+
click to zoom
3D Models
ONET4201PARGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016A+
click to zoom

ONET4201PARGTR Details

  • Manufacturer Part Number:

    ONET4201PARGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Applications:

    SDH; SONET

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ONET4201PARGTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power decoupling, and place it as close to the device as possible. Ensure the power supply is stable and within the recommended voltage range (1.7V to 3.6V).
  • The recommended clock frequency is 32.768 kHz, but the device can operate with a clock frequency range of 30 kHz to 100 kHz. However, the accuracy and stability of the clock source will affect the device's performance.
  • Configure the device to use the lowest possible clock frequency, disable unnecessary features, and use the power-down mode when not in use. Additionally, optimize the firmware to minimize current consumption during active modes.
  • Use the Texas Instruments SmartRF Flash Programmer or the UniFlash tool to program the device. Ensure the programming voltage is within the recommended range (1.7V to 3.6V) and follow the programming guidelines outlined in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ONET4201PARGTR Overview

Use the download button to access the ONET4201PARGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ONET4, or try a keyword search, such as ATM/SONET/SDH ICs
