ONET4211LDRGER - Texas Instruments

Description: Laser Drivers 155 Mbps - 4.25 Gbps Laser Driver

Download ONET4211LDRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

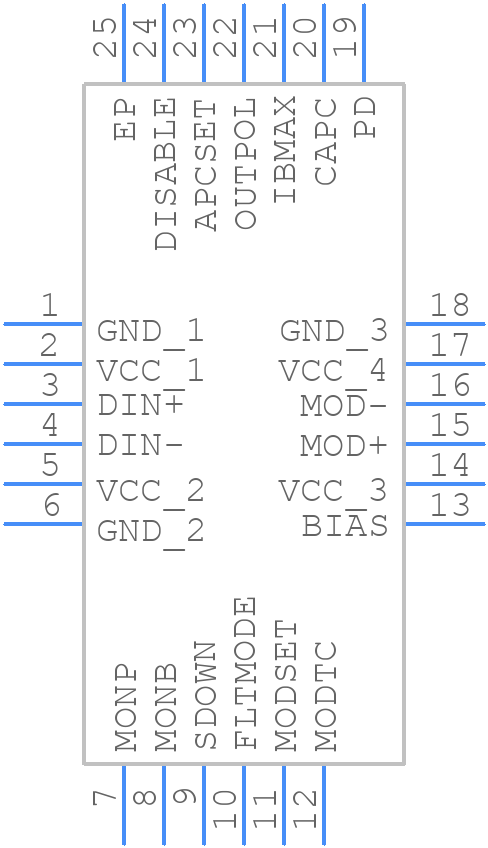

ONET4211LDRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ONET4211LDRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
ONET4211LDRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

ONET4211LDRGER Details

  • Manufacturer Part Number:

    ONET4211LDRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ONET4211LDRGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ONET4211LDRGER has a programmable input voltage range. You can configure it using the VSENSE pin and the VREF pin. Refer to the datasheet section 8.3.1 for more information on how to set the input voltage range.
  • The ONET4211LDRGER can withstand input voltage transients up to 40 V for a duration of 100 ms. However, it's recommended to use a TVS diode or a voltage clamp to protect the device from higher voltage transients.
  • To ensure accurate current measurement, make sure to use a low-impedance current sense resistor (RSENSE) and place it close to the device. Also, ensure that the PCB layout is designed to minimize noise and interference.
  • During a fault condition, such as an overcurrent or overvoltage event, the ONET4211LDRGER will latch off and require a power cycle to reset. The device also has a built-in fault flag (FAULT) that can be used to indicate the fault condition.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ONET4211LDRGER Overview

Use the download button to access the ONET4211LDRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ONET4, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
