Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLUA623 and SLUA624). It's essential to follow these guidelines to ensure optimal performance, reduce thermal issues, and prevent damage to the device.
The ONET4251PARGTR has a programmable input voltage range. You can configure it using the I2C interface and the TI-provided software development kit (SDK). The SDK includes APIs and documentation to help you set the input voltage range according to your specific requirements.
The maximum current rating for the output pins is 10 mA. To ensure safe operation, you should follow the recommended output pin loading and impedance matching guidelines provided in the datasheet. Additionally, you can use external current-limiting resistors or buffers to prevent overcurrent conditions.
The ONET4251PARGTR has built-in fault detection mechanisms, such as overvoltage protection, undervoltage protection, and overtemperature protection. You can also implement external fault detection and protection mechanisms using the device's interrupt pins and I2C interface. TI provides application notes and code examples to help you implement these mechanisms.
The recommended I2C bus speed for the ONET4251PARGTR is up to 400 kHz. You should follow the I2C bus configuration guidelines provided in the datasheet, including pull-up resistor selection, bus capacitance, and clock stretching. Additionally, you can use I2C bus analyzers and debugging tools to ensure reliable communication.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ONET4251PARGTR Overview

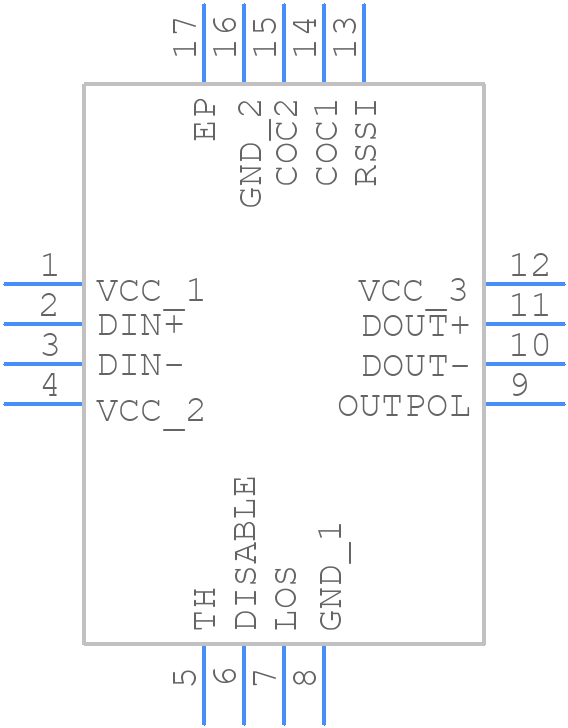

Use the download button to access the ONET4251PARGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ONET4,
or try a keyword search, such as ATM/SONET/SDH ICs
