The maximum power dissipation of the OP07DPSR is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor to reduce the gain-bandwidth product. Additionally, ensure that the feedback loop has a sufficient phase margin (>45°) to prevent oscillations.
For optimal performance, use a star-grounding technique, where the analog and digital grounds are separated and connected at a single point. Keep the input and output traces short and away from noise sources, and use a ground plane to reduce electromagnetic interference (EMI).
The OP07DPSR is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate in high-temperature environments, consider using a more temperature-stable op-amp or taking additional thermal management measures.
To minimize EMI, use shielding, filtering, and grounding techniques. Keep the OP07DPSR away from noise sources, use twisted pairs for input and output connections, and consider adding EMI filters or common-mode chokes to reduce radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OP-07DPSR Overview

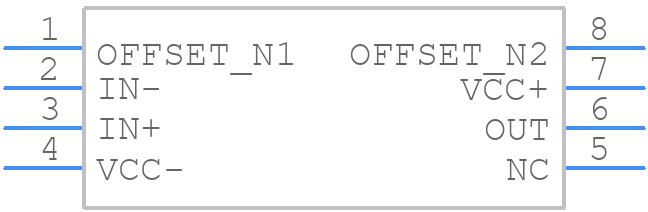

Use the download button to access the OP-07DPSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OP-07,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
