The maximum power dissipation of the OP07DPE4 is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance from junction to ambient (125°C/W).
To ensure stability in a unity-gain configuration, add a 10nF to 22nF capacitor between the output and the inverting input to compensate for the internal pole. This is not explicitly mentioned in the datasheet, but it's a common practice to ensure stability.
To minimize noise and EMI, use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the device. Additionally, place decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins.
The OP07DPE4 is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, consider using a more temperature-stable op-amp or taking additional measures to ensure reliability, such as derating the device or using thermal management techniques.
The OP07DPE4 has built-in ESD protection, but it's still important to handle the device with care. Use an anti-static wrist strap or mat, and avoid touching the device's pins or exposed internal components. If you need to store the device, use an anti-static bag or container.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OP07DPE4 Overview

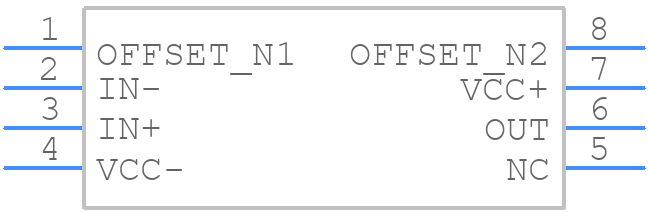

Use the download button to access the OP07DPE4 schematic symbol, PCB footprint, and 3D model.
