OP413ESZ - Analog Devices

Description: OP413ESZ, Quad Operational Amplifier 3.5MHz CMOS, 5 V, 16-Pin SOIC W

Download OP413ESZ Model

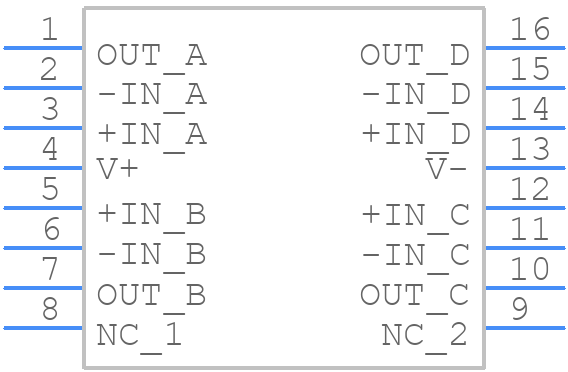

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OP413ESZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
OP413ESZ - Analog Devices  - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

OP413ESZ Details

  • Manufacturer Part Number:

    OP413ESZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.7 µA

  • Bias Current-Max (IIB) @25C:

    0.65 µA

  • Common-mode Reject Ratio-Min:

    97 dB

  • Common-mode Reject Ratio-Nom:

    116 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    175 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    YES

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Min:

    0.8 V/us

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3400

  • Voltage Gain-Min:

    1000000

  • Wideband:

    YES

  • Width:

    7.5 mm

OP413ESZ Frequently Asked Questions (FAQs)

  • A good PCB layout for OP413ESZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure stability, ensure that the gain and phase margins are sufficient, and the circuit is properly compensated. A good rule of thumb is to target a phase margin of at least 45° and a gain margin of at least 10 dB. Additionally, use a low-ESR capacitor for decoupling and avoid parasitic capacitance in the feedback loop.
  • The maximum power dissipation of OP413ESZ is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
  • Yes, OP413ESZ can be used as a unity-gain buffer. However, ensure that the input impedance is high enough to avoid loading the source, and the output impedance is low enough to drive the load. Additionally, consider the bandwidth and distortion requirements of your application.
  • Use voltage clamps or transient voltage suppressors to protect OP413ESZ from overvoltage. For ESD protection, use a TVS diode or a dedicated ESD protection device. Ensure that the protection devices are rated for the maximum voltage and current of your application.
