The maximum power dissipation of the OPA131U is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the MSOP package, it is 440mW at 25°C. It is essential to ensure that the device does not exceed these power dissipation limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10nF to 100nF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations. Additionally, it is essential to ensure that the layout is well-designed, with short leads and minimal parasitic capacitance.
The recommended input impedance for the OPA131U is greater than 1kΩ. This is because the input bias current of the op-amp is relatively high, and a low input impedance can cause significant voltage drops, leading to errors and instability. Using a high input impedance helps to minimize these effects and ensure accurate operation.
While the OPA131U can be used as a comparator, it is not the most suitable device for this application. The OPA131U is an audio op-amp, and its output stage is not designed for high-speed switching. It may not provide the required speed, accuracy, and noise immunity for comparator applications. It is recommended to use a dedicated comparator device, such as the LM339 or TLC393, for these types of applications.
To protect the OPA131U from ESD damage, it is essential to follow proper handling and storage procedures. This includes using anti-static wrist straps, mats, and bags, as well as ensuring that the device is stored in a conductive foam or anti-static packaging. Additionally, it is recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, in the circuit to prevent voltage transients from damaging the op-amp.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA131U Overview

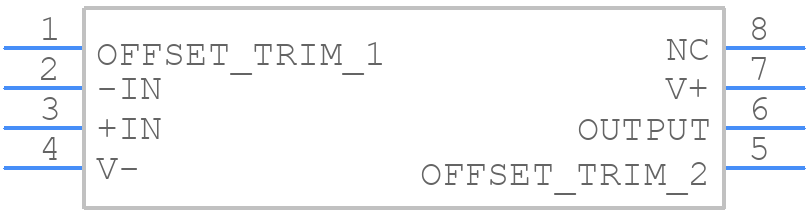

Use the download button to access the OPA131U schematic symbol, PCB footprint, and 3D model.
