The maximum power dissipation of the OPA131UA is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-100pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and prevent oscillations.
For optimal performance, it's recommended to use a symmetrical PCB layout, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce noise and electromagnetic interference (EMI).
The OPA131UA is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate in high-temperature environments, consider using a more temperature-stable op-amp or taking additional thermal management measures.
To prevent electrostatic discharge (ESD) damage, use proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. You can also add external ESD protection devices, such as TVS diodes or ESD arrays, to the PCB design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA131UA Overview

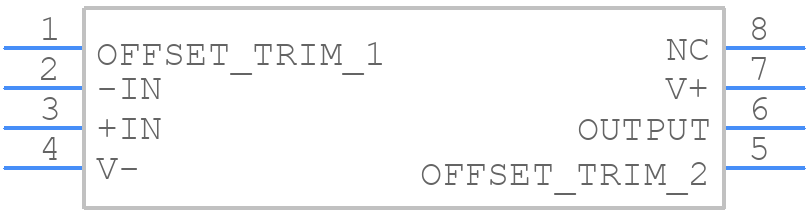

Use the download button to access the OPA131UA schematic symbol, PCB footprint, and 3D model.
