The maximum power dissipation of the OPA134UA is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability in a gain-of-100 configuration, it's recommended to add a 22pF capacitor in parallel with a 1kΩ resistor between the output and the inverting input. This helps to compensate for the phase shift and prevent oscillation.
To minimize noise and EMI, it's recommended to keep the input traces short and away from the output traces, use a ground plane, and decouple the power supply with a 10uF capacitor. Additionally, keep the feedback resistors close to the op-amp and use a low-ESR capacitor for decoupling.
Yes, the OPA134UA can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V, so the input signal should be biased accordingly. Additionally, the output voltage swing will be reduced in single-supply operation.
To protect the OPA134UA from overvoltage and ESD, it's recommended to add a voltage clamp circuit, such as a zener diode or a transient voltage suppressor, between the input pins and the power supply rails. Additionally, use ESD protection devices, such as TVS diodes, on the input lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA134UA Overview

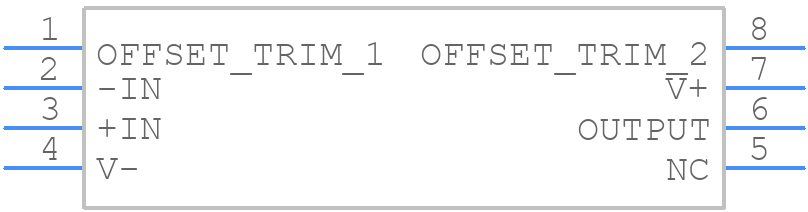

Use the download button to access the OPA134UA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA13,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
