SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
50 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
17.1 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Unity Gain BW-Nom:
180000
Voltage Gain-Min:
1995.262
Wideband:
YES
Width:
3 mm
OPA1632DGNG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the OPA1632 datasheet, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow these guidelines to ensure optimal performance and minimize noise.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. TI provides a gain resistor calculator tool to help with this selection. Additionally, the datasheet provides guidelines for selecting gain resistors based on the desired gain and bandwidth.
The maximum power dissipation for the OPA1632DGNG4 is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 90°C/W. It's essential to ensure that the device operates within this power dissipation limit to prevent overheating and damage.
The OPA1632DGNG4 is rated for operation from -40°C to 125°C. While it can operate in high-temperature environments, it's essential to ensure that the device is properly derated to prevent overheating and damage. TI provides derating guidelines in the datasheet to help with this calculation.
The OPA1632DGNG4 is a high-gain, high-bandwidth op-amp, which can be prone to noise and oscillations. To filter out noise and oscillations, it's essential to use proper filtering techniques, such as adding capacitors to the input and output, using a noise filter, and ensuring proper grounding and shielding.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA1632DGNG4 Overview

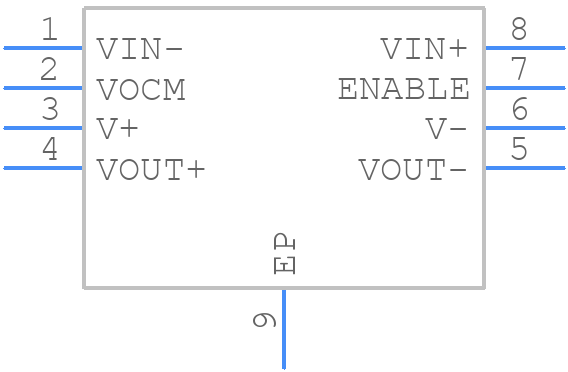

Use the download button to access the OPA1632DGNG4 schematic symbol, PCB footprint, and 3D model.
