Texas Instruments provides a recommended PCB layout in the OPA1632 datasheet, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow these guidelines to minimize noise, ensure stability, and optimize performance.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. Texas Instruments provides a gain resistor calculator tool to help select the optimal resistors. Additionally, the datasheet provides guidelines for resistor selection and layout considerations.
The maximum power dissipation for the OPA1632DRG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's essential to perform thermal calculations and consider heat sinking to ensure reliable operation.
The OPA1632DRG4 is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consult the datasheet and perform thermal calculations to ensure the device operates within its specified limits.
Oscillations or instability issues can be caused by various factors, including layout, component selection, and power supply noise. To troubleshoot, start by reviewing the PCB layout, ensuring that it follows the recommended guidelines. Check the power supply noise and decoupling, and verify that the gain resistors are properly selected and laid out. Consult the datasheet and application notes for additional guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA1632DRG4 Overview

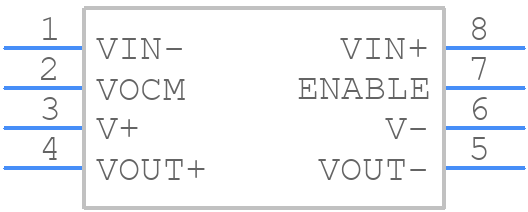

Use the download button to access the OPA1632DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA16,
or try a keyword search, such as Operational Amplifiers
