Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. Texas Instruments provides a gain resistor calculator tool to help with this selection. Additionally, the datasheet provides guidelines for selecting gain resistors based on the op-amp's gain-bandwidth product and noise specifications.
The maximum power dissipation for the OPA1644AIDR is dependent on the ambient temperature and the package type. For the SOIC package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application's requirements and ensure that the device is operated within the recommended operating conditions.
The OPA1644AIDR is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consult the datasheet and application notes for guidance on operating the device in high-temperature environments and to ensure that the device is operated within the recommended operating conditions.
The OPA1644AIDR is a high-precision op-amp, but it's still susceptible to noise and interference. To filter out noise, use proper PCB design techniques, such as shielding, grounding, and decoupling. Additionally, consider using external filters, such as RC filters or active filters, to reject noise and interference. Consult the datasheet and application notes for guidance on noise reduction techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA1644AIDR Overview

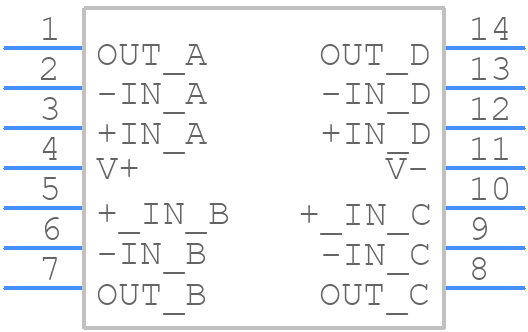

Use the download button to access the OPA1644AIDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA16,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
