Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. Texas Instruments provides a gain resistor calculator tool to help with this selection. Additionally, consider the resistor's tolerance, temperature coefficient, and power rating to ensure optimal performance.
The maximum power dissipation of the OPA1664AIPW is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's essential to perform thermal calculations and consider heat sinking or other thermal management techniques to ensure the device operates within its safe operating area.
The OPA1664AIPW is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consider the device's thermal characteristics, such as the junction-to-ambient thermal resistance, and ensure that the device operates within its safe operating area. Additionally, Texas Instruments provides guidance on high-temperature operation in the datasheet and application notes.
Oscillations or instability issues can be caused by various factors, such as poor PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, start by reviewing the PCB layout and ensuring that it follows good design practices. Check the power supply decoupling, and consider adding additional decoupling capacitors. Also, verify that the gain resistors and other components are correctly selected and matched. If the issue persists, consult the datasheet and application notes for guidance on stability analysis and compensation techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA1664AIPW Overview

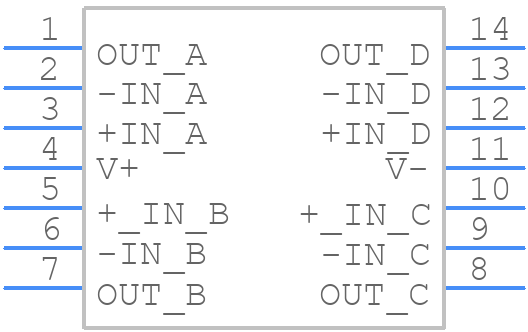

Use the download button to access the OPA1664AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA16,
or try a keyword search, such as Operational Amplifiers
