Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. The OPA2107APG4 datasheet provides a gain resistor selection table, and Texas Instruments also offers online tools, such as the Op-Amp Gain Calculator, to help with resistor selection. Additionally, consider the resistor's tolerance, temperature coefficient, and parasitic capacitance when making your selection.
The maximum power dissipation for the OPA2107APG4 is dependent on the ambient temperature and the package type. The datasheet specifies a maximum power dissipation of 1.4W for the PG4 package, but this can be derated based on the ambient temperature. It's essential to calculate the power dissipation for your specific application and ensure it's within the recommended limits to prevent overheating and reliability issues.
To protect the OPA2107APG4 from EMI, use proper shielding, grounding, and layout techniques. Keep the op-amp and its associated components away from noise sources, such as switching power supplies and high-frequency circuits. Use a shielded enclosure, and consider adding EMI filters or common-mode chokes to reduce noise coupling. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
The OPA2107APG4 datasheet recommends keeping the input capacitance below 10pF to maintain stability and minimize oscillations. For the output, a capacitance of 10nF to 100nF is recommended to improve stability and reduce ringing. However, the optimal capacitance values may vary depending on the specific application and circuit configuration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2107APG4 Overview

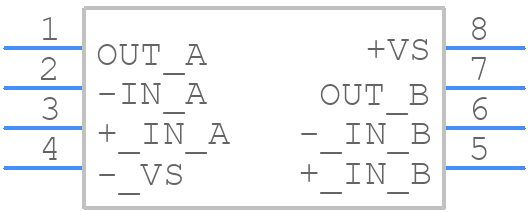

Use the download button to access the OPA2107APG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA21,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
