Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website has a PCB layout tool that can help with designing a layout for the OPA211AIDGKTG4.
The OPA211AIDGKTG4 is an ESD-sensitive device, and proper handling and storage procedures should be followed to prevent damage. This includes using anti-static wrist straps, mats, and bags, as well as avoiding touching the device pins or exposed internal components.
The maximum power dissipation of the OPA211AIDGKTG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated at higher temperatures. A thermal analysis should be performed to ensure the device operates within safe limits.
The OPA211AIDGKTG4 is rated for operation from -40°C to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's essential to review the datasheet and perform thermal analysis to ensure the device operates within safe limits and meets the required specifications.
The selection of input and output capacitors depends on the specific application requirements, such as frequency response, noise filtering, and stability. The datasheet provides guidelines for capacitor selection, and TI's application notes and technical articles can provide additional guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA211AIDGKTG4 Overview

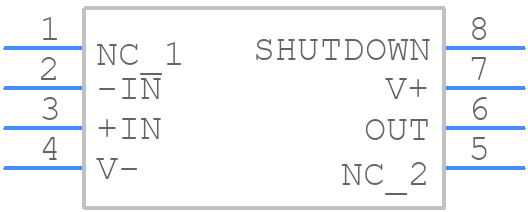

Use the download button to access the OPA211AIDGKTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA21,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
