Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website has a PCB layout tool that can help with designing a layout for this op-amp.
The high input impedance of the OPA211AIDRGTG4 can be handled by using a low-impedance signal source, adding a buffer stage, or using a voltage follower configuration. It's also important to minimize the capacitance at the input pins to prevent signal attenuation.
The maximum power dissipation of the OPA211AIDRGTG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated to 0.7W at 85°C. It's essential to ensure proper thermal management to prevent overheating.
Yes, the OPA211AIDRGTG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input signal is within the common-mode range of the op-amp, and that the output is not loaded with a low impedance. Additionally, the datasheet recommends using a 1kΩ to 10kΩ feedback resistor to ensure stability.
To reduce noise and oscillations in the OPA211AIDRGTG4 circuit, it's essential to use proper bypassing and decoupling techniques, such as adding capacitors to the power supply pins. Additionally, using a low-noise power supply, minimizing the length of the input traces, and adding a noise filter can help reduce noise and oscillations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA211AIDRGTG4 Overview

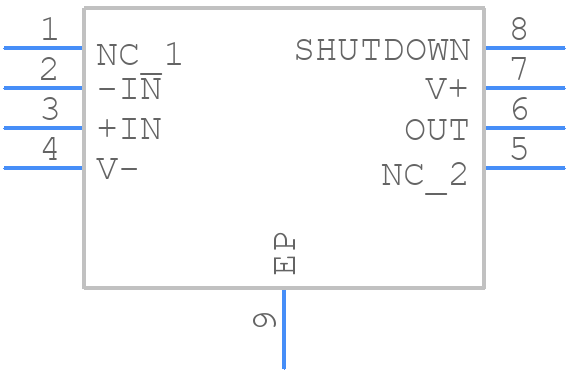

Use the download button to access the OPA211AIDRGTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA21,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
