Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website has a PCB layout tool that can help with designing a layout for the OPA211IDRGR.
The OPA211IDRGR has a high input bias current, which can cause errors in high-impedance circuits. To mitigate this, use a low-impedance source, add a bias current cancellation resistor, or use a current-feedback amplifier topology.
Yes, the OPA211IDRGR can be used in a unity-gain buffer configuration, but it's essential to ensure that the input impedance is low enough to prevent oscillations. A series resistor at the input can help stabilize the circuit.
The output capacitor should be chosen based on the desired frequency response, output impedance, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10nF and 100nF, and a voltage rating that exceeds the maximum output voltage.
Yes, the OPA211IDRGR is suitable for audio applications due to its low noise, high slew rate, and wide bandwidth. However, it's essential to consider the op-amp's distortion characteristics, output impedance, and power supply rejection ratio when designing an audio circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA211IDRGR Overview

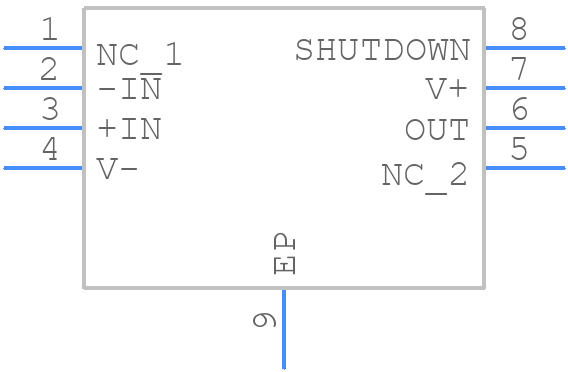

Use the download button to access the OPA211IDRGR schematic symbol, PCB footprint, and 3D model.
