Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and decoupling capacitors. Additionally, it's essential to follow good PCB design practices, such as minimizing noise and parasitic capacitance, and using a solid ground plane.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. Texas Instruments provides a gain resistor calculator tool to help with this. Additionally, consider the resistor's tolerance, temperature coefficient, and power rating to ensure optimal performance.
The maximum power dissipation of the OPA2202IDGKR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's essential to perform thermal calculations and consider heat sinking or other thermal management techniques to ensure reliable operation.
The OPA2202IDGKR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consider the device's thermal characteristics, such as the maximum junction temperature, and ensure that the operating temperature is within the recommended range.
To protect the OPA2202IDGKR from EMI, use proper shielding, grounding, and layout techniques. Consider using a shielded enclosure, and ensure that the PCB has a solid ground plane. Additionally, use EMI filters, such as ferrite beads or common-mode chokes, to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2202IDGKR Overview

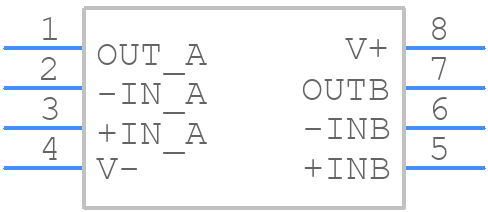

Use the download button to access the OPA2202IDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA22,
or try a keyword search, such as Operational Amplifiers
