SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Seated Height-Max:
0.8 mm
Slew Rate-Nom:
6.4 V/us
Supply Current-Max:
5 mA
Supply Voltage Limit-Max:
20 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
18000
Voltage Gain-Min:
501187
Wideband:
NO
Width:
3 mm
OPA2210IDRGT Frequently Asked Questions (FAQs)
The maximum power dissipation of the OPA2210IDRGT is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability, it's recommended to use a compensation capacitor (CF) between the output and the inverting input pins. The value of CF depends on the gain and bandwidth requirements of the application. A good starting point is to use a capacitor value of 2.2nF to 4.7nF.
To minimize noise and ensure optimal performance, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a ground plane, and placing the op-amp close to the signal sources. Additionally, use short, direct traces for the power supply pins and decouple the power supply lines with capacitors.
Yes, the OPA2210IDRGT can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. To ensure proper operation, the input signal should be biased within this range.
The OPA2210IDRGT has internal ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2210IDRGT Overview

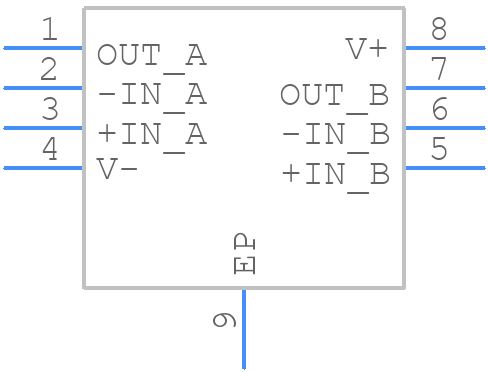

Use the download button to access the OPA2210IDRGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
