Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The OPA2228PAG4 has a high input bias current, which can cause voltage drops across the input resistors. To mitigate this, use low-value input resistors, and consider adding a voltage follower or a buffer stage to reduce the input impedance. Additionally, ensure that the input signal is properly terminated and that the op-amp is operated within its recommended common-mode voltage range.
The maximum power dissipation of the OPA2228PAG4 is dependent on the ambient temperature and the package type. For the PAG4 package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure that the device is operated within its recommended thermal limits.
Yes, the OPA2228PAG4 can be used as a unity-gain buffer. However, due to its high input bias current, it's essential to ensure that the input signal is properly terminated and that the op-amp is operated within its recommended common-mode voltage range. Additionally, consider adding a low-pass filter to reduce noise and oscillations.
To protect the OPA2228PAG4 from ESD and overvoltage, use ESD protection diodes, such as the Texas Instruments TPD2E001, and consider adding overvoltage protection circuits, such as a voltage clamp or a crowbar circuit. Additionally, ensure that the device is handled and stored in accordance with the recommended ESD precautions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2228PAG4 Overview

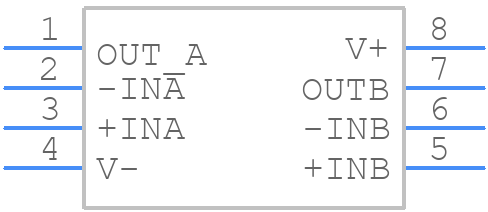

Use the download button to access the OPA2228PAG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
