Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The output capacitor (C_L) should be chosen based on the desired closed-loop bandwidth, output impedance, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. However, it's recommended to consult the datasheet and application notes for specific guidance on capacitor selection.
Yes, the OPA2241PAG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is low enough to drive the load. Additionally, the op-amp should be properly biased, and the output should be decoupled with a capacitor to prevent oscillations.
To minimize EMI and RFI, it's recommended to use proper shielding, grounding, and layout techniques. This includes using a metal shield around the op-amp, keeping sensitive traces away from noise sources, and using a common-mode choke or ferrite bead to filter out high-frequency noise.
The maximum power dissipation for the OPA2241PAG4 is dependent on the ambient temperature and the package type. For the PAG4 package, the maximum power dissipation is 1.4W at 25°C. However, it's recommended to consult the datasheet and thermal design guidelines to ensure proper thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2241PAG4 Overview

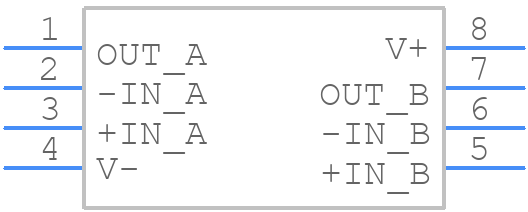

Use the download button to access the OPA2241PAG4 schematic symbol, PCB footprint, and 3D model.
