Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The OPA2277AIDRMTG4 has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap or mat when handling the device, and store it in an anti-static bag or container. Additionally, consider adding external ESD protection components, such as TVS diodes or ESD arrays, to the PCB design.
The maximum power dissipation for the OPA2277AIDRMTG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated to 0.7W at 85°C. It's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating.
The OPA2277AIDRMTG4 is rated for operation from -40°C to 125°C, but its performance may degrade at higher temperatures. It's essential to consider the device's thermal characteristics, such as its junction temperature, and ensure that it's properly cooled to prevent overheating. Additionally, consult the datasheet for temperature-related specifications, such as the maximum junction temperature and thermal resistance.
When selecting resistors and capacitors for the OPA2277AIDRMTG4, consider the device's input impedance, output impedance, and frequency response. Choose resistors with low noise and high precision, and capacitors with low ESR and high reliability. Additionally, ensure that the components are rated for the operating voltage and temperature range of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2277AIDRMTG4 Overview

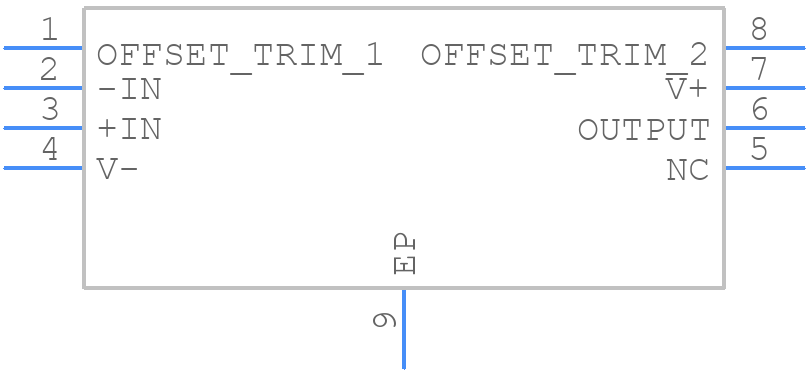

Use the download button to access the OPA2277AIDRMTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA22,
or try a keyword search, such as Operational Amplifiers
