Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. The OPA2277PAG4 datasheet provides a gain resistor selection table, and Texas Instruments also offers an online gain calculator tool. Additionally, consider the resistor's tolerance, temperature coefficient, and power rating to ensure optimal performance.
The maximum power dissipation for the OPA2277PAG4 is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (θJA) of the package. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range to prevent overheating.
Yes, the OPA2277PAG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and that the output is properly terminated to prevent oscillations. Additionally, consider the device's input bias current and input offset voltage to ensure that they do not affect the signal integrity.
The OPA2277PAG4 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from overvoltage and ESD events. Ensure that the protection devices are properly sized and placed to prevent signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2277PAG4 Overview

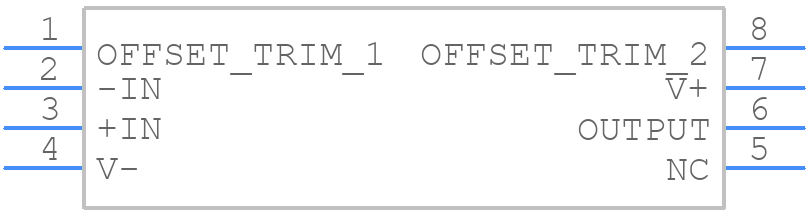

Use the download button to access the OPA2277PAG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
