For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and symmetrical, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be placed away from high-frequency noise sources.
The OPA2277PG4 is a sensitive device and requires proper handling to prevent ESD damage. It is recommended to use an ESD wrist strap or mat, handle the device by the body or pins, and avoid touching the pins or leads. Additionally, the device should be stored in an anti-static bag or tube.
The maximum power dissipation of the OPA2277PG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated to 0.7W at 85°C. It is recommended to use a heat sink or thermal pad to ensure reliable operation.
The OPA2277PG4 is rated for operation from -40°C to 125°C, but the performance may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper heat sinking to prevent thermal shutdown. Additionally, the device may require additional compensation or filtering to maintain stability at high temperatures.
The gain resistors should be selected based on the desired gain and bandwidth of the amplifier. A higher gain requires lower resistor values, but may also increase the noise and distortion. It is recommended to use 1% or 0.1% tolerance resistors to ensure accurate gain and minimize drift. Additionally, the resistors should be placed close to the device to minimize parasitic capacitance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2277PG4 Overview

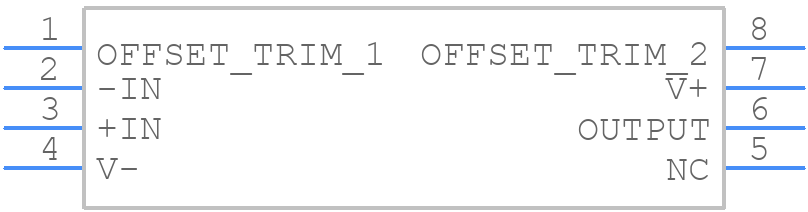

Use the download button to access the OPA2277PG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA22,
or try a keyword search, such as Operational Amplifiers
