The maximum power dissipation of the OPA2277UAG4 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
Yes, the OPA2277UAG4 is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the maximum junction temperature (TJ) should not exceed 150°C.
To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor or using a series resistor-capacitor network in the feedback path. Additionally, the datasheet provides guidance on stability analysis and compensation techniques.
To minimize noise and ensure optimal performance, it's recommended to use a star-grounding technique, where the analog and digital grounds are separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
Yes, the OPA2277UAG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the source, and the output impedance is low enough to drive the load. Additionally, consider the bandwidth and distortion requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2277UAG4 Overview

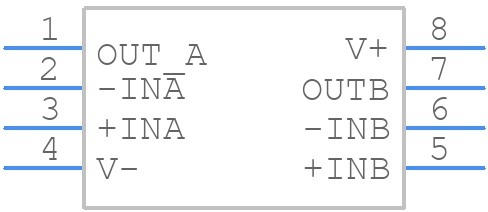

Use the download button to access the OPA2277UAG4 schematic symbol, PCB footprint, and 3D model.
