A good PCB layout for OPA2316IDRGT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, ensure that the gain-setting resistors are properly matched, and the capacitive load is minimized. Also, add a small capacitor (e.g., 10pF) in parallel with the feedback resistor to improve stability. Additionally, use a low-ESR capacitor for decoupling.
The maximum power dissipation of OPA2316IDRGT is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 670mW at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the operating temperature and thermal resistance.
Yes, OPA2316IDRGT can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance to prevent signal attenuation. Also, add a small capacitor (e.g., 10pF) in parallel with the feedback resistor to improve stability.
To minimize EMI and RFI, use a shielded enclosure, keep the circuit layout compact, and use a common-mode choke or ferrite beads on the input and output lines. Additionally, use a low-pass filter or a shielded cable to connect the input signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2316IDRGT Overview

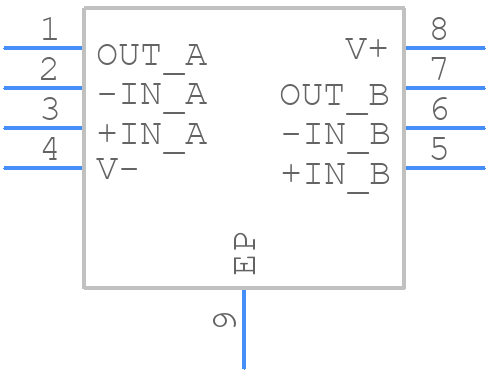

Use the download button to access the OPA2316IDRGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
