Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, TI offers a PCB layout checklist in their application note 'AN-1149: PCB Layout Guidelines for Op-Amps' to ensure optimal performance.
The OPA2322SAIDGST has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap or mat, and store the devices in anti-static packaging. For additional protection, consider adding external ESD protection devices, such as TVS diodes, in your circuit design.
The maximum power dissipation for the OPA2322SAIDGST is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 670mW at 25°C. However, it's essential to calculate the power dissipation for your specific application and ensure it's within the recommended limits to prevent overheating.
The OPA2322SAIDGST is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. For extended temperature ranges, consider using a more specialized op-amp or consulting with a TI representative for guidance on high-temperature applications.
The selection of resistors and capacitors depends on the specific application and desired performance. TI provides guidance on component selection in the datasheet and application notes. In general, use high-quality, low-noise resistors and capacitors with suitable temperature coefficients and tolerances to ensure optimal performance and stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2322SAIDGST Overview

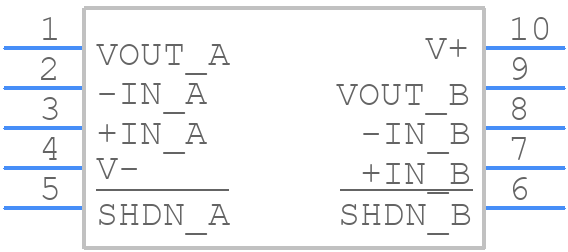

Use the download button to access the OPA2322SAIDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
