Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, TI offers a PCB layout checklist and a thermal design guide to help ensure optimal performance.
The OPA2330AIDRBT has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap or mat, and avoid touching the device pins. If you need additional protection, consider using external ESD protection devices or circuits.
The maximum power dissipation for the OPA2330AIDRBT is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 720mW at 25°C. However, it's essential to perform thermal calculations and consider heat sinking or other thermal management techniques to ensure the device operates within safe limits.
The OPA2330AIDRBT is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, ensure you follow proper thermal management techniques and consider derating the device's power dissipation accordingly.
The output capacitor selection depends on the specific application requirements, such as the output voltage, current, and frequency. As a general guideline, use a low-ESR capacitor with a value between 10nF to 100nF. The datasheet provides more detailed guidance on output capacitor selection and stability considerations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA2330AIDRBT Overview

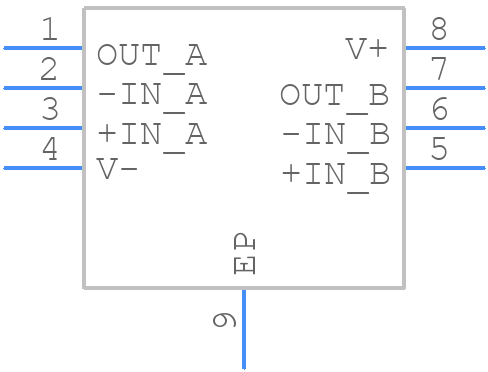

Use the download button to access the OPA2330AIDRBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
