TI recommends following the general guidelines for op-amp layout and placement, such as keeping the input traces short and away from noise sources, using a ground plane, and placing decoupling capacitors close to the power pins. Additionally, TI provides a reference design layout in the datasheet's application section.
The gain resistors should be chosen based on the desired gain, bandwidth, and noise requirements. TI provides a gain-bandwidth product graph in the datasheet, which can be used to determine the optimal resistor values. Generally, higher gain resistors result in lower gain and higher bandwidth, while lower gain resistors result in higher gain and lower bandwidth.
The OPA2337EA/250G4 can drive up to 1nF of capacitive load without compromising stability. However, it's recommended to use a series resistor (Rs) to isolate the capacitive load and ensure stability. TI provides a graph in the datasheet to help determine the required Rs value based on the capacitive load.
The OPA2337EA/250G4 is specified to operate from -40°C to 125°C. At extreme temperatures, the op-amp's performance, such as increased noise and reduced bandwidth, can be expected. It's essential to consider these effects in the system design and ensure that the op-amp is operated within its specified temperature range.
The OPA2337EA/250G4 have built-in ESD protection and latch-up prevention. However, it's still essential to follow proper ESD handling and assembly techniques, such as using ESD-safe materials, grounding oneself before handling the device, and following recommended assembly procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2337EA/250G4 Overview

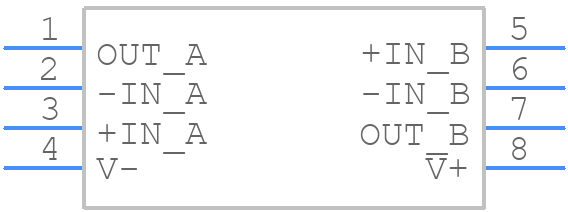

Use the download button to access the OPA2337EA/250G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
