Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, ensure that the circuit is properly compensated, and the gain and phase margins are sufficient. Use a compensation capacitor (e.g., 10nF to 100nF) between the output and the inverting input, and consider adding a series resistor (e.g., 10Ω to 100Ω) at the output to reduce the output impedance and improve stability.
The maximum power dissipation of OPA2343EA/2K5G4 is 670mW. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Ensure that the calculated power dissipation is within the recommended limit to prevent overheating and damage to the device.
Yes, OPA2343EA/2K5G4 can operate in high-temperature environments, but with some limitations. The device is specified to operate up to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C. At higher temperatures, the device's performance may degrade, and the reliability may be affected. Ensure that the device is properly heat-sinked and that the operating conditions are within the recommended specifications.
To protect OPA2343EA/2K5G4 from EMI and RFI, use proper shielding, grounding, and filtering techniques. Use a metal shield or a shielded enclosure to enclose the circuit, and ensure that the PCB is properly grounded. Add EMI filters, such as ferrite beads or common-mode chokes, to the input and output lines to reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2343EA/2K5G4 Overview

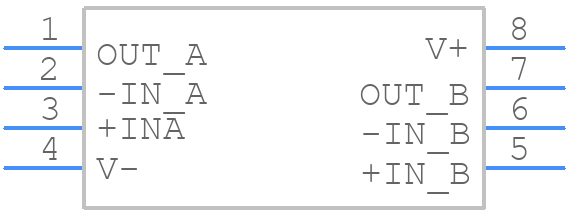

Use the download button to access the OPA2343EA/2K5G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
