Texas Instruments provides a recommended PCB layout in the OPA2347 datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce parasitic capacitance, and ensure optimal performance.
The OPA2347 is a unity-gain stable op-amp, but it still requires a minimum output capacitance to ensure stability. A good rule of thumb is to use a capacitor with a value between 10nF to 100nF, depending on the output impedance and load capacitance. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation for the OPA2347EA/250G4 is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (125°C/W) specified in the datasheet. However, it's recommended to derate the power dissipation to ensure reliable operation.
While the OPA2347 is an op-amp, it's not recommended to use it as a comparator. The OPA2347 has a relatively slow slew rate (0.5V/μs) and a limited output current (±30mA), which can lead to poor performance and instability in comparator applications. TI offers dedicated comparator products, such as the LM339 or TLV7031, which are better suited for comparator applications.
The OPA2347 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. TI recommends using anti-static wrist straps, mats, and packaging materials, as well as following JEDEC standards for ESD handling and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2347EA/250G4 Overview

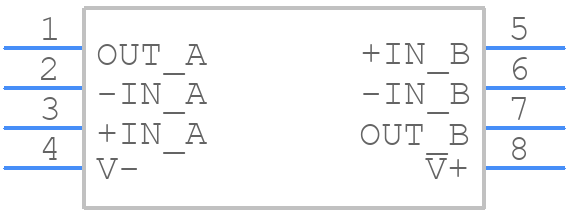

Use the download button to access the OPA2347EA/250G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
