Texas Instruments recommends a layout that minimizes parasitic capacitance and inductance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, use a compensation capacitor (typically 10-100 pF) between the output and the inverting input, and ensure that the feedback network has a high impedance at high frequencies. Also, avoid using long feedback traces and keep the gain-setting resistors close to the op-amp.
The maximum power dissipation of OPA2391YBJR is 670 mW. To calculate it, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA2391YBJR can operate in high-temperature environments, but its performance may degrade. The device is specified for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Above 125°C, the device's offset voltage, noise, and distortion may increase.
To protect OPA2391YBJR from ESD, use anti-static packaging and handling procedures, and ensure that the device is connected to a ground plane during assembly. Additionally, use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA2391YBJR Overview

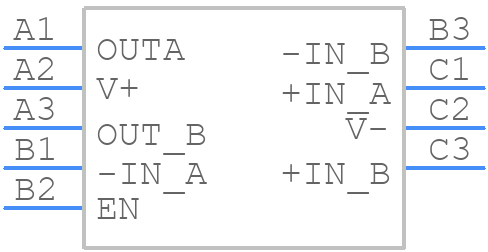

Use the download button to access the OPA2391YBJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
