The maximum power dissipation of the OPA251UA/2K5 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22pF) between the output and the inverting input pins to compensate for the op-amp's internal capacitance and prevent oscillations.
To minimize noise and EMI, it's recommended to keep the input and output traces short and away from each other, use a ground plane, and avoid running sensitive traces near the op-amp's power pins. Additionally, decoupling capacitors should be placed close to the op-amp's power pins.
While the OPA251UA/2K5 can be used as a comparator, it's not the most suitable op-amp for this application due to its relatively slow slew rate (2.5V/μs) and limited output current (±30mA). A dedicated comparator IC would be a better choice for most applications.
To protect the OPA251UA/2K5 from electrostatic discharge (ESD), it's recommended to use ESD-safe handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, ESD protection diodes can be added to the circuit to protect the op-amp from voltage transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA251UA/2K5 Overview

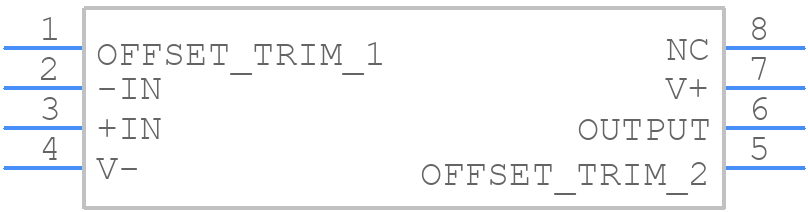

Use the download button to access the OPA251UA/2K5 schematic symbol, PCB footprint, and 3D model.
