A good PCB layout for OPA2541SM involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a reference design and layout guidelines in the datasheet and application notes.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. TI provides a gain resistor calculator tool and application notes that can help with selecting the right resistors. Additionally, the datasheet provides guidelines for selecting resistors based on the desired gain and bandwidth.
The maximum power dissipation of OPA2541SM is 1.4W. To ensure you don't exceed it, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout), and ensure it is below the maximum rating. You can also use thermal design and heat sinking to reduce the junction temperature and increase the power handling capability.
To filter out noise and EMI, use a combination of passive and active filtering techniques. Use decoupling capacitors, ferrite beads, and common-mode chokes to filter out high-frequency noise. Additionally, use shielding, grounding, and layout techniques to minimize EMI. TI provides application notes and reference designs that demonstrate noise reduction techniques.
The recommended operating voltage range for OPA2541SM is 2.7V to 5.5V. Operating the device outside this range may affect its performance, reliability, and lifespan. Ensure that the power supply voltage is within the recommended range to ensure optimal performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2541SM Overview

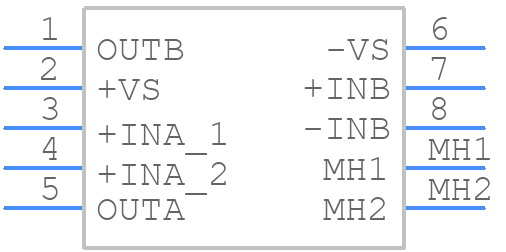

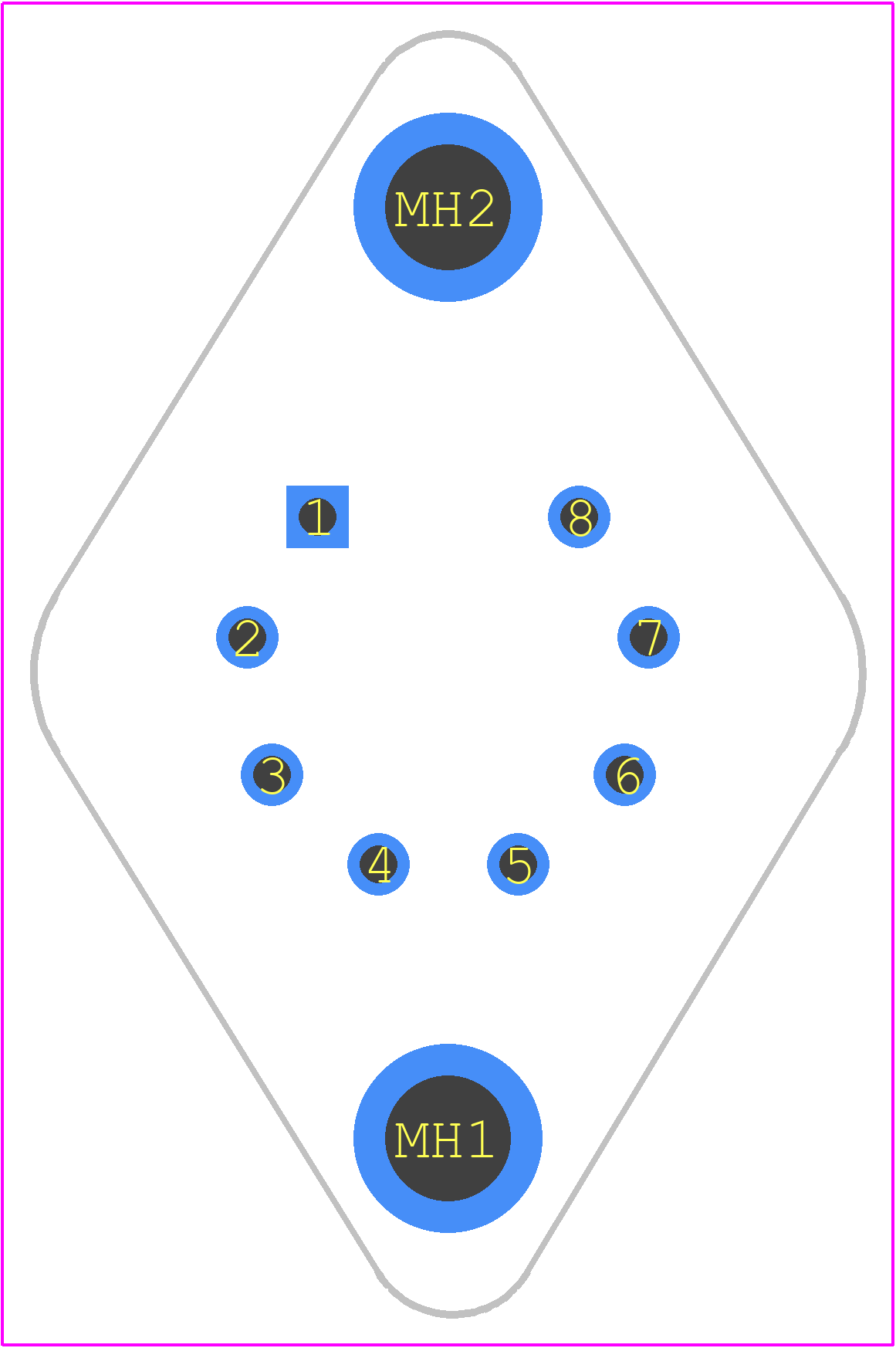

Use the download button to access the OPA2541SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA25,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
