Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, make sure to follow the recommended compensation capacitor values, keep the feedback resistors as close to the op-amp as possible, and avoid using long feedback traces. Additionally, use a low-ESR capacitor for power supply decoupling and ensure that the power supply is well-regulated.
The maximum power dissipation of OPA2607SIRUGR is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to keep the junction temperature below 150°C to ensure reliable operation.
Yes, OPA2607SIRUGR is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C. Ensure proper thermal management and consider derating the device's performance at high temperatures.
To protect OPA2607SIRUGR from EMI and RFI, use a shielded enclosure, keep the op-amp away from noise sources, and use a common-mode choke or ferrite bead on the input and output traces. Additionally, use a low-pass filter or a shielded cable to connect the input and output signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2607SIRUGR Overview

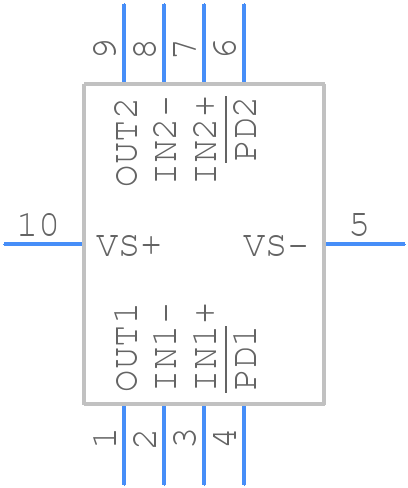

Use the download button to access the OPA2607SIRUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
