OPA2613IDR - Texas Instruments

Description: High Speed Operational Amplifiers Dual Wideband Hi-Output Current

Download OPA2613IDR Model

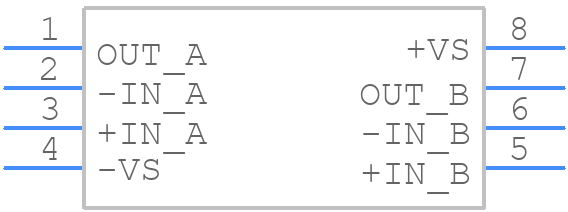

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA2613IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
OPA2613IDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

OPA2613IDR Details

  • Manufacturer Part Number:

    OPA2613IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    14.5 µA

  • Bias Current-Max (IIB) @25C:

    0.012 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.3 µA

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -6.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -6 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    50 V/us

  • Slew Rate-Nom:

    60 V/us

  • Supply Current-Max:

    12.4 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    125000

  • Voltage Gain-Min:

    39810.717

  • Wideband:

    NO

  • Width:

    3.895 mm

OPA2613IDR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, which includes keeping the input and output traces short and away from noise sources, using a ground plane, and placing decoupling capacitors close to the power pins.
  • The gain resistors should be chosen based on the desired gain and bandwidth requirements. A higher gain setting will result in a lower bandwidth, while a lower gain setting will result in a higher bandwidth. The datasheet provides a gain-setting equation and a table of recommended gain resistors for different gain settings.
  • The maximum power dissipation of the OPA2613IDR is 1.4W. To calculate the power dissipation for your specific application, you need to consider the output current, output voltage, and supply voltage. The datasheet provides a power dissipation equation and a thermal resistance table to help with the calculation.
  • The OPA2613IDR has a maximum input voltage of 5.5V. To protect the device from input overvoltage, you can use input voltage limiting resistors or clamping diodes. Exceeding the maximum input voltage can result in device damage or degradation, and may also cause the output to saturate or oscillate.
  • The recommended operating temperature range for the OPA2613IDR is -40°C to 125°C. Temperature affects the device's performance by changing its gain, bandwidth, and noise characteristics. The datasheet provides temperature-related specifications and graphs to help designers understand the device's behavior over temperature.
