Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and away from each other, and uses a solid ground plane. A 4-layer PCB with a dedicated analog ground plane is also recommended.
The gain resistors should be chosen based on the desired gain, bandwidth, and noise requirements. A good starting point is to use 1% or 0.1% tolerance resistors with a value between 1kΩ and 10kΩ. The OPA2614IDG4 datasheet provides a gain resistor calculator to help with the selection.
The maximum power dissipation of the OPA2614IDG4 is 1.4W per channel, assuming a 25°C ambient temperature and a 14-pin SOIC package. However, this value can be derated based on the operating temperature and package type.
Yes, the OPA2614IDG4 can be used as a unity-gain buffer, but it's not the most optimal configuration. The op-amp has a high input impedance and a low output impedance, making it suitable for non-inverting amplifier configurations. However, as a unity-gain buffer, it may exhibit some peaking and oscillation due to its high bandwidth.
The OPA2614IDG4 has internal ESD protection, but it's still recommended to use external protection devices such as TVS diodes or ESD protection arrays to protect the op-amp from electrostatic discharge and overvoltage events. Additionally, ensure that the input and output pins are not exposed to voltages beyond the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2614IDG4 Overview

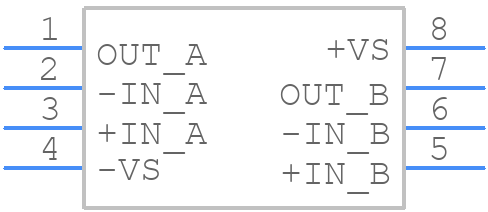

Use the download button to access the OPA2614IDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
