Texas Instruments provides a recommended PCB layout in the datasheet, which includes keeping the input and output traces short and away from noise sources, using a ground plane, and placing decoupling capacitors close to the power pins.
The gain resistors should be chosen based on the desired gain and bandwidth requirements. A higher gain resistor value will result in higher gain but lower bandwidth. TI provides a gain-bandwidth product graph in the datasheet to help with this selection.
The maximum power dissipation of the OPA2625IDGSR is 1.4W. To calculate it, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
To protect the OPA2625IDGSR from input overvoltage, use input clamping diodes or voltage-limiting resistors. Exceeding the maximum input voltage can cause permanent damage to the device, including latch-up or destruction of the input stage.
The recommended operating temperature range for the OPA2625IDGSR is -40°C to 125°C. Temperature affects the op-amp's performance by changing its gain, bandwidth, and noise characteristics. Higher temperatures can also reduce the device's reliability and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2625IDGSR Overview

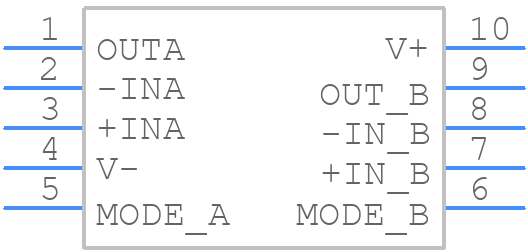

Use the download button to access the OPA2625IDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
