Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The choice of output filter depends on the specific application requirements. For audio applications, a simple RC filter or a more complex active filter may be needed to remove high-frequency noise. For non-audio applications, a simple RC filter or a ferrite bead may be sufficient. Consult the datasheet and application notes for guidance on selecting the right output filter.
The maximum power dissipation of the OPA2652UG4 is dependent on the ambient temperature and the package type. For the UG4 package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application conditions and ensure that the device is operated within the recommended operating conditions.
Yes, the OPA2652UG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is low enough to drive the load. Additionally, the device should be operated within the recommended operating conditions, and the output should not be overloaded.
To troubleshoot oscillations or instability issues, start by checking the PCB layout, component values, and soldering quality. Ensure that the device is operated within the recommended operating conditions, and the input and output impedances are matched. Use a scope to measure the output signal and look for signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting and fixing oscillation issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2652UG4 Overview

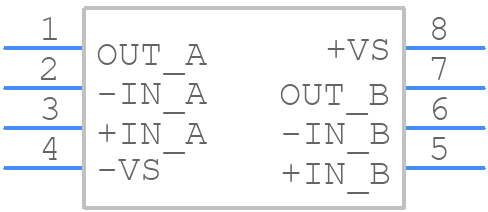

Use the download button to access the OPA2652UG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
